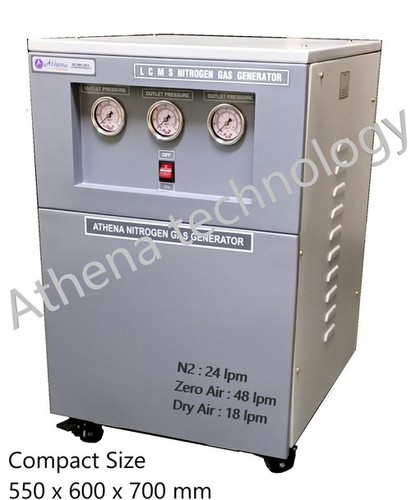

Nitrogen Generator for LCMS

Nitrogen Generator for LCMS
Send Inquiry
Product Code : NG 75
Brand Name : Athena
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price Range
  • 100000.00 - 500000.00 INR/Piece
Product Specifications
  • Usage
  • GC LCMSM
  • Size
  • compact
  • Color
  • Grey
  • Product Type
  • Nitrogen Generator
  • Pressure
  • 0-8 bar kgf/cm2
  • Condition
  • New
  • Power Source
  • Electric
  • Application
  • Pharmaceutical Processing
  • Material
  • AL and SS
  • Dimension(L*W*H)
  • 500 x 600 x 850 mm Millimeter (mm)
  • Weight
  • 60 Kilograms (kg)
  • Power(W)
  • 150 Watt (w)
  • Voltage
  • 220V AC 50 Hzs Volt (v)
  • Warranty
  • 2 years
Product Description

Nitrogen Generator for LCMS.

We are giving our best efforts in manufacturing, exporting and supplying an optimum quality range of Nitrogen Generator for LCMS. The provided generator is manufactured with the aid of sophisticated techniques using premium grade by our skilled professionals. Finding applications in chemical industries and labs, the offered generator is used to generate high pressure nitrogen. This Nitrogen Generator for LCMS can be bought at pocket friendly rates from us.

Key Points:

  • Low power consumption

  • Simple installation

  • User friendly operations

  • Hassle free working

Specification :

SPECIFICATIONS

For LC-MS (ATN-LCMS -01)

For LC-MS-MS (ATN-LCMSMS-2) (for Sciex model)

Flow rate Capacity of N2 Generator

6 to 30 LPM (as per selection of model)

12 LPM (filtered zero air)

8 LPM ( purified dry air)

4 LPM (pure nitrogen)

Pressure

5 kg/cm2 or 100 psig / 60 psig

Purity

99.995%

> 99.995%

Moisture

2 ppm

2 ppm

Total Hydro Carbon

< 0.5 ppm

< 0.5 ppm

CO & CO2

< 2 ppm

< 2 ppm

Micro Particulates

< 0.01

< 0.01

Method of purification

Pressure Swing Adsorption

Room temperature

5oC - 45 oC

Startup time

1 hrs / programmable timer

Electrical requirements without Compressor

230 V AC, 50 Hz, 1 Ph, 2 Amp


Trade Information
  • FOB Port
  • Mumbai
  • Supply Ability
  • 50 Piece Per Month
  • Delivery Time
  • 1 Week
  • Main Domestic Market
  • All India
