Product Details:
Minimum Order Quantity | 1 Piece |
Model | Athena GC |
Capacity | 200-10000 ml/min |
Brand/Make | Athena |
Dew Point | -70C |
Gas Type | Dry Nitrogen |
Design Type | Customised, Standard |
Weight | 60 |
Power | 500W |
Voltage | 220V AC 50 Hzs |
Purity | 99.99995% |
Size | Compact |
Output Flow | 100 ml/min - 1000ml/min |
Type | Nitrogen Generator |

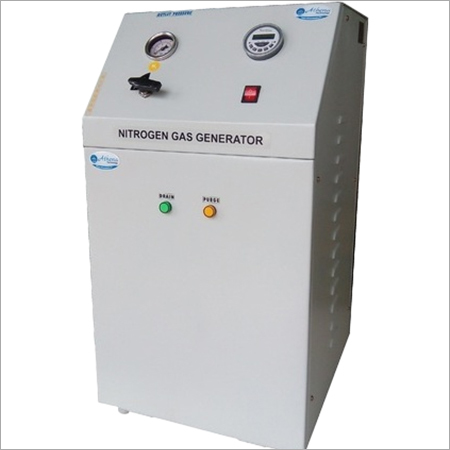

Nitrogen Generator for Gas Chromatographs Introduction:
Features:
Applications:
Technical Specifications:
Specifications | Nitrogen Gas Specification of TNA-01 & TNA-01A | Zero Air Specification of TNA-01 & TNA-01A |
Capacity of TNA-01 | 500ml/min at | 4000ml/min |
Capacity of TNA- 01A | 200ml/min | 1500ml/min |
ATN-02 (M) | 500ml/min to 10 LPM | --- |
Pressure | 5 kg/cm² | |
Moisture | < 2 ppm | < 2 ppm |
Oxygen | < 5 ppm | |
Total Hydro Carbon (THC) | < 0.3 ppm | < 0.3 ppm |
CO & CO2 | < 2 ppm | < 2 ppm |
Purity | UHP / GC grade | UHP / GC grade |
Micron particulates | < 0.01 | < 0.01 |
Method of Purification | Pressure Swing Adsorption (PSA) & Depressurizations | |
Start up time | 2 hr / programmable by timer | 10 min |
Electrical requirements | 230 V AC, 50 Hz, 1 ph, 5 Amp |
